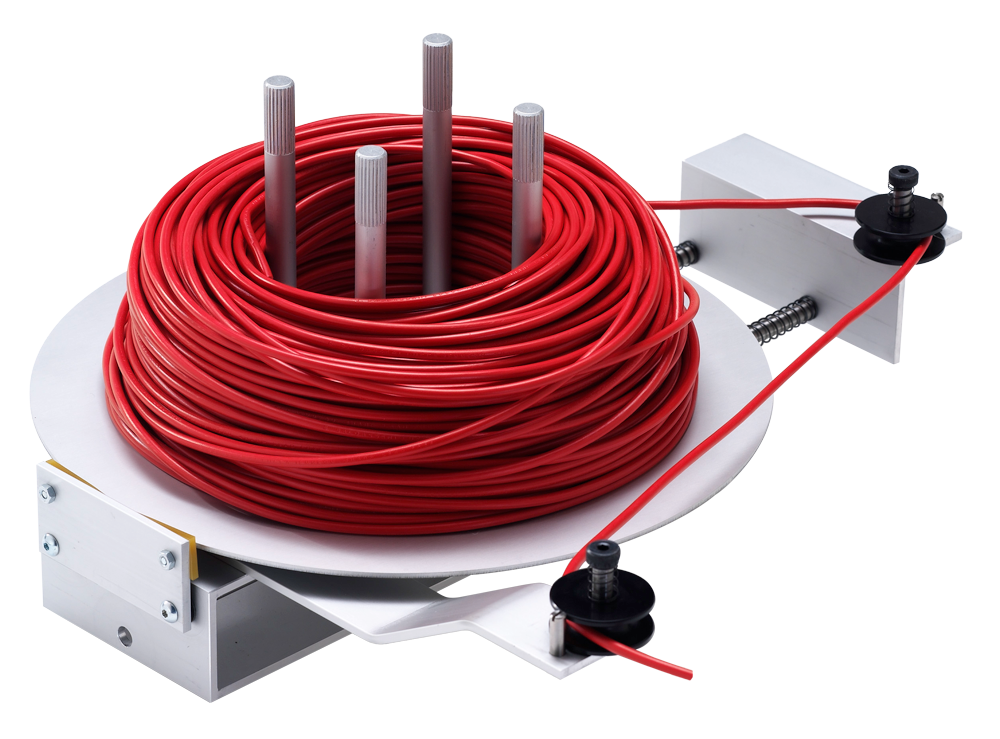

Cable Dereeler DR 30
Accessories 006180A reliable unwinder is essential for precise and trouble-free cable processing. The DR 30 has been specially developed to prevent cable twisting and knotting during cutting to length. Thanks to the integrated brake, the device ensures uniform cable control, which significantly improves the measurement accuracy of the cut-to-length device. As a cost-effective entry-level dispenser, the DR 30 is particularly easy to use and does not require its own drive. The supplied screw clamp allows stable attachment to the workbench, ensuring a safe and efficient workflow.
Product Description and Technical Data
- Prevents cable twisting and knotting – Stable cable routing for exact measurement results
- Integrated brake – Uniform cable feed for higher cutting precision
- No motor required – simple and maintenance-free
- Quick assembly – can be easily attached to the workbench with a screw clamp
- Cost-effective solution – ideal for beginners and professional applications
| Rotary plate | 300 mm |
| Cable coil hub | Ø 80 – 170 mm |
| Outer coil dimension | Max. ø 260 mm |
| Coil height | Max. 120 mm |
| Coil weight | Max. 7 kg |
| Dimensions (L x W x H) | 420 x 380 x 200 mm |
| Weight | 2 kg / 4.4 lbs |
| Part no. | 006180 |
